HFP Series High Flow Pleated Filter Cartridges

Description Specifications

Features

• Available in economic/nominal/absolute structure, particle removal rating from 0.5 to 100 Micron

• 100% polypropylene components provide broad chemical compatibility, suitable for a variety of fluids

• High dirt holding capacity and longer service life

Applications

• Food & Beverage

• RO Pre-Filtration

• Process Water

• Wastewater

• Sea water desalination

• Oil&Chemical

• Power plant water treatment

• Machinery&Equipment

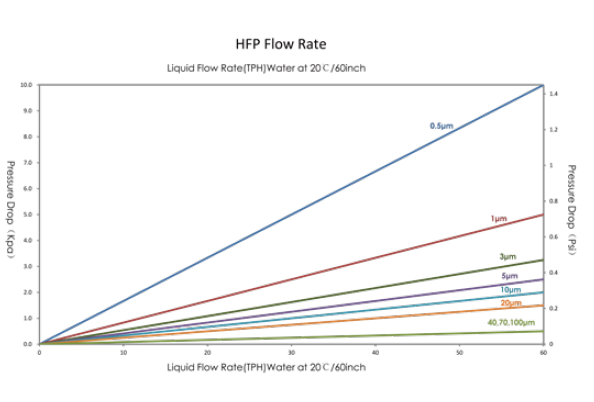

Flow Rate


Quality

• Filter Cartridges are manufactured in a clean room environment

• Manufactured according to ISO9001:2015 certified Quality Management System

Material of Constructions

• Media: PP

• Support: PP

• End cap: PP

• Sealing: Buna

Dimension

• Outer Diameter: 172mm

• Inner Diameter: 76mm

• Length: 40”, 60”

Performance

• Max Operating Temperature: 82°C

• Max. Operating DP: 35Psid
