HFHT Series High Flow Pleated Filter Cartridges

Description Specifications

Features

• Substantial effective filtration area allows for long operating service life.

• 100% polyester construction provides chemical compatibility where polypropylene isn’t suited.

• Media composition is structured for ratings of 0.5 to 5microns.

• Optional micro-glass media options provide enhanced retention efficiency.

Applications

• Filtration of benzene and methylbenzene.

• Filtration of aromatic hydrocarbon solvents.

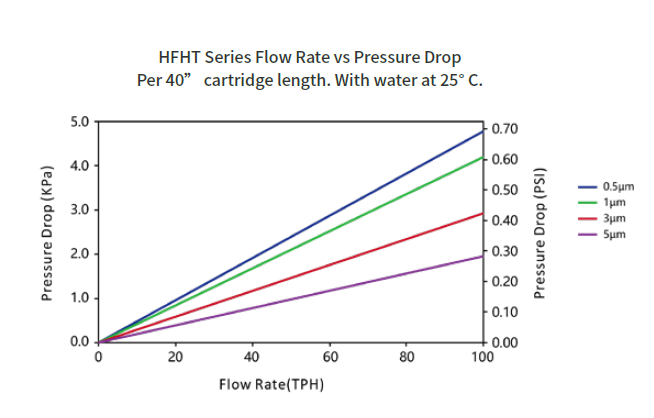

Flow Rate


Quality

• Filter cartridges are manufactured in a production facility using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.

• Full materials traceability is documented for all finished lots.

Material of Constructions

• Media: GF, PBT

• Support Layer: Polyester

• Cage/Core/End Caps: Polyester

• Sealing Material Options: EPDM, FKM

Material of Constructions

• Media: GF, PBT

• Support Layer: Polyester

• Cage/Core/End Caps: Polyester

• Sealing Material Options: EPDM, FKM

Dimension

• Outer Diameter 152mm (6”)

• Length 1026mm (40”), 1524mm(60”), 1540mm (60”L)

• Filtration Area 3.35m²/40“5 m²/60“
