Features
• Highly asymmetric polysulfone membrane provides excellent dirt holding capacity and flow characteristics
• Hydrophilic polysulfone membrane eliminates the need for prewetting and flushing
• Asymmetric membrane structure provides high flow rates with lower differential pressure and a longer life time
• Widely compatible with cleaning applications in many processes such as developing, etching, and stripping
• Manufactured in controlled clean room environment
Applications
• General-Use water Filtration
• Deionized water systems
• Liquid clarification
• Chemical filtration
• Ulta-Pure water systems
Dimension
• Diameter 69 mm
• Length 5”, 10”, 20”, 30”, 40”
Material of Constructions
• Media Highly Asymmetric Hydrophilic PSU Membrane
• Support Polypropylene (PP)
• Cage/Core/End Polypropylene (PP)
• Sealing EPDM, Viton®, E-FKM

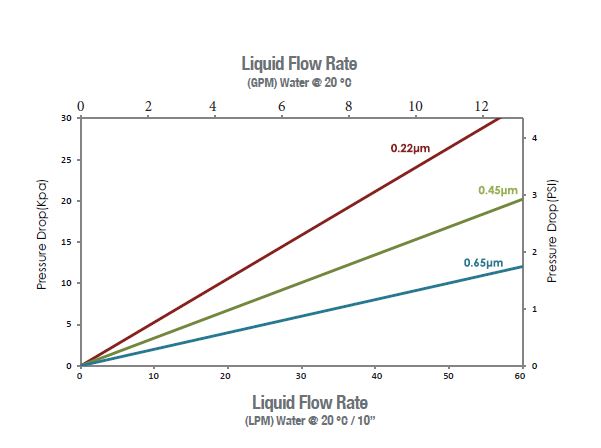

Performance
• Operating Conditions
• Max. Operating Temperature 80 °C
• Max. Operating DP 4 bar @ 21 °C, 2.4 bar @ 80 °C
