Melt Blown Cartridge

GVS CFM Series Melt Blown Cartridge are one of the standard filter cartridges. It is fused and intertwined with polypro-pylene resin without any chemical glues. The cartridge is glued at random to form 3D micro porea which will make the cartridge's 3 layers with fibers on the surface and inside. With the fiber, density from high filtration rating, strong pollutants hold capacity, low pressure drop, gradual changing structure loose outside and close inside, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.
Information request/ Free sample request

Information request/ Free sample request

Please fill in the following information. * is required

Type of request

Info request
Free sample request
  • Yes
  • No
  • Millipore
  • Sartorius
  • Pall
  • Thermo Fisher
  • Others
  • Yes
  • No
  • Search Engines
  • WeChat platform
  • Exhibitions
  • Dealers
  • Third platforms
change

Product features

Three-layer deep filtration structure provides high pollution capacity and long service life
Direct hot melt entanglement of raw materials without any additives
Pure PP, good chemical compatibility
FDA certifies raw materials to ensure safe use


Typical Application

R.O.Pre-filtration
Food and Beverage
Industry Water, Plating Solution
Chemical, Organic Solvent Filtration
Microelectronics
Pharmaceutics

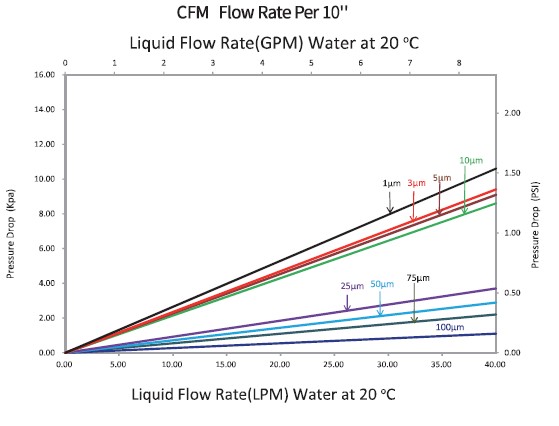

Flow Rate

Body Diameter

63mm , 115mm

Internal Diameter

28mm

Length

9.75", 9.87", 10", 20", 30", 40"

Filter Media

PP

Media Support

PP

Structural Components

PP

Sealing Ring

Silicone(EPDM, Teflon and Viton are available)

Maximum Operating Temperature

65°C

Maximum Operating Differential Pressure

Forward 2.0 Bar @ 20℃

Part No. Pore Size Length Connection Sealing Ring Inner Core
CFM 0010=0.1μm 10=10" G=226/Locking tabs/Fin E=EPDM P=PP

Order

0020=0.2μm 20=20“ H=226/locking tabs/Flat S=Silicone S=stainless steel

Order

0045=0.45μm 30=30" I=226/plug / Flat V=Viton

Order

0060=0.6μm 40=40" J=222/locking tabs / Fin T=Teflon

Order

0100=1μm   K=222/plug / Fin

Order

0300=3μm   L=222/plug / Flat

Order

0500=5μm   M=DOE

Order
