String Wound Cartridge

GVS CFW Series String Wound Filter Cartridges are manufactured of structured loose outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength. Therefore, they can withstand higher PSID and severe operating conditions. The economical design makes the cartridges of greater superiority in cost-saving.
Information request/ Free sample request

Information request/ Free sample request

Please fill in the following information. * is required

Type of request

Info request
Free sample request
  • Yes
  • No
  • Millipore
  • Sartorius
  • Pall
  • Thermo Fisher
  • Others
  • Yes
  • No
  • Search Engines
  • WeChat platform
  • Exhibitions
  • Dealers
  • Third platforms
change

Product features

● Broad chemical compatibility
● Many different combinations of filter materials and pore sizes
● String Wound depth filter cartridge
● High dirt holding capacity
● Economical design


Typical Application

● Consumer Products
● Food and Beverage
● Drinking Water
● Pharmaceutical
● Edible Oil
● Inks & Paints

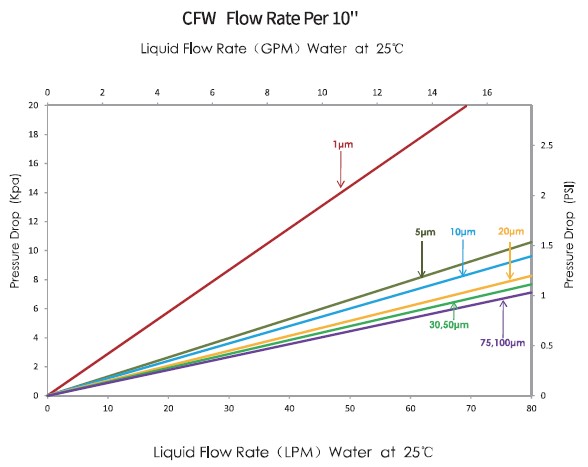

Flow Rate

Body Diameter

63mm , 115mm

Internal Diameter

28mm

Length

9.87", 10", 20", 30", 40"

Filter Media

PP, Bleached Cotton, Glass Fiber

Center Core

PP, SS

Maximum Operating Temperature

PP 80 ℃

Cotton 120 ℃

Glass Fiber 200 ℃

Maximum Operating Differential Pressure

Forward 2.0 Bar @ 20℃

Part No. Pore Size Length Connection Sealing Ring Inner Core Price/one
CFW 0100=1μm 10=10" G=226/Locking tabs/Fin E=EPDM P=PP

Order

0500=5μm 20=20" H=226/locking tabs/Flat S=Silicone S=stainless steel

Order

1000=10μm 30=30" I=226/plug / Flat V=Viton

Order

2000=20μm 40=40" J=222/locking tabs / Fin T=Teflon

Order

3000=30μm   K=222/plug / Fin

Order

5000=50μm   L=222/plug / Flat

Order

    M=DOE
