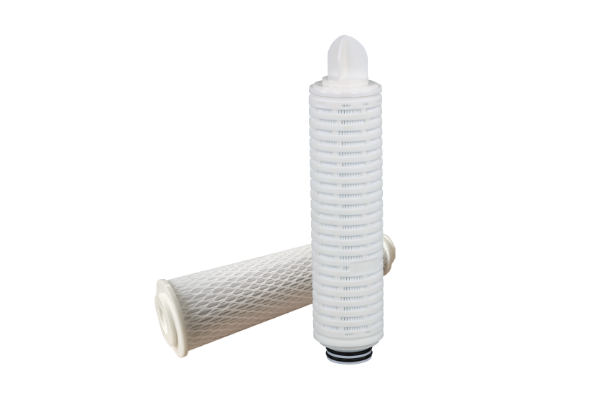

PP Cartridge

GVS Nominal PP membrane is a pleated membrane in depth structure. It is a nominal grade applicable in filtrating particles in aqueous solutions and chemical. Have high dirt hold capacity, high retention rate of contaminants and wide chemical compatibility for various use, highly effective as providing longer lifespan. Offers sizes from 5 to 40 inches and 3 kinds of End-caps of SOE-Fin, Flat and DOE. Pore sizes are varied from nominal ratings of 0.1μm to 50μm.
Information request/ Free sample request

Information request/ Free sample request

Please fill in the following information. * is required

Type of request

Info request
Free sample request
  • Yes
  • No
  • Millipore
  • Sartorius
  • Pall
  • Thermo Fisher
  • Others
  • Yes
  • No
  • Search Engines
  • WeChat platform
  • Exhibitions
  • Dealers
  • Third platforms
change

Product features

Large filtration area and high flow
Low pressure difference and long life
Wide chemical compatibility
Clean workshop production ensure the filter practical safety
Filtration accuracy is from 0.1 μ m to 50 μ m. It can meet the requirements of different filtration
Full range of filter size and interface mode


Typical Application

Process water
Vinegar
Aqueous solutions
Beer, wine and spirits
Juice, soft drinks and edible oils
Bulk chemicals
Pharmaceutical intermediates

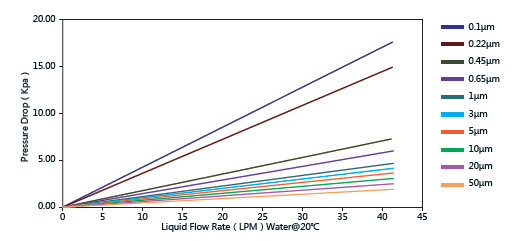

Flow Rate

Body Diameter

69mm

Length

5’’, 10’’, 20’’, 30’’, 40’’

Filter Media

PP

Media Support

PP

Structural Components

PP

Sealing Ring

Silicone(EPDM, Teflon and Viton are available)

Filtration Area

0.65 m2/10’’

Maximum Operating Temperature

80°C

Maximum Operating Differential Pressure

Forward 4.0 Bar @ 20℃

Part No. Pore Size Length Connection Sealing Ring Inner Core Price/one
CFPPP 0010=0.1μm 5 = 5’’ G=226/Locking tabs/Fin E=EPDM P=PP

Order

0020=0.2μm 10=10’’ H=226/locking tabs/Flat S=Silicone

Order

0045=0.45μm 20=20’’ I=226/plug / Flat V=Viton

Order

0100=1μm 30=30’’ J=222/locking tabs / Fin T=Teflon

Order

0300=3μm 40=40’’ K=222/plug / Fin

Order

0500=5μm   L=222/plug / Flat

Order

1000=10μm   M=DOE

Order

2000=20μm

Order

5000=50μm

Order
