PES Cartridge

Description Specifications Ordering information

Product features

● Large filtration area and high flow
● Low pressure difference and long life
● Wide chemical compatibility
● Clean workshop production ensure the filter practical safety
● Sterilization level filter: 0.1μm, 0.2μm, 0.45μm, 0.6μm
● Low protein adsorption rate

Typical Application

● Cell Culture Media
● Large Volume Parenteral (LVP’s)
● Pharmaceutical Bulk Chemical Solutions
● Bottled Water
● Process Water
● Aseptic Packaged Liquids
● Beer, Wine and Spirits
● Juice, Soft Drinks and Edible Oils

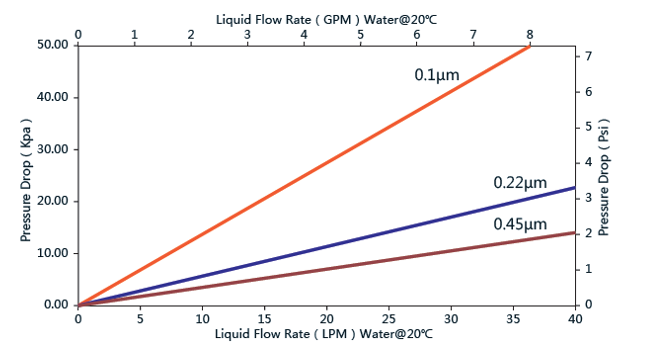

Flow Rate

Body Diameter	69mm
Length	5’’, 10’’, 20’’, 30’’, 40’’
Filter Media	PES
Media Support	PP
Structural Components	PP
Sealing Ring	Silicone（EPDM, Teflon and Viton are available）
Filtration Area	0.65 m2/10’’
Maximum Operating Temperature	80°C
Maximum Operating Differential Pressure	Forward 4.0 Bar @ 20℃
Brevundimonas diminuta 0.2μm	LRV≥7 /cm²

Part No.	Pore Size	Length	Connection	Sealing Ring	Inner Core
CFPPS	0010=0.1μm	5 = 5’’	G=226/Locking tabs/Fin	E=EPDM	P=PP	Order
	0020=0.2μm	10=10’’	H=226/locking tabs/Flat	H=226/locking tabs/Flat		Order
	0045=0.45μm	20=20’’	I=226/plug / Flat	V=Viton		Order
	0060=0.6μm	30=30’’	J=222/locking tabs / Fin	T=Teflon		Order
		40=40’’	K=222/plug / Fin			Order
			L=222/plug / Flat			Order
			M=DOE			Order
