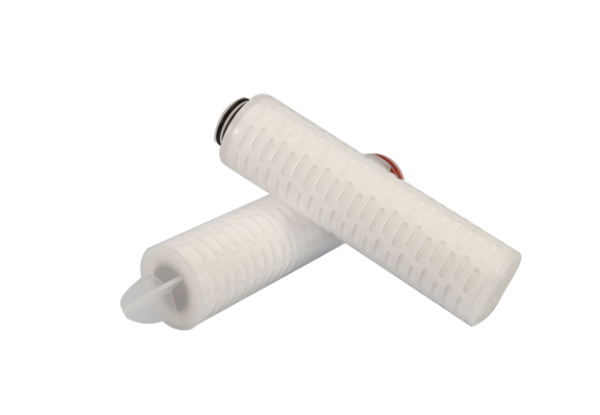

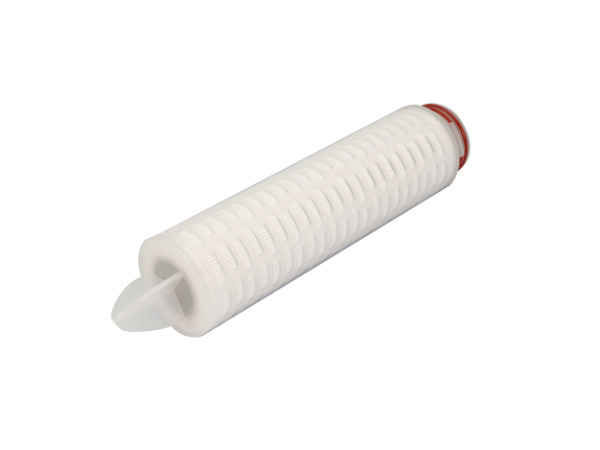

PTFE Cartridge

GVS Hydrophobic Polytetrofluoroethylene (PTFE) membrane Filter is a general application filter constructed from 0.1-5.0 μm membrane. Offers broad chemical compatibility, higher filter area with high flowrates at low pressure drop and low extractable. Generally applicable in various filtration process from compressed air, pressurized gases and filtration of chemicals and Solvents.
Information request/ Free sample request

Information request/ Free sample request

Please fill in the following information. * is required

Type of request

Info request
Free sample request
  • Yes
  • No
  • Millipore
  • Sartorius
  • Pall
  • Thermo Fisher
  • Others
  • Yes
  • No
  • Search Engines
  • WeChat platform
  • Exhibitions
  • Dealers
  • Third platforms
change

Product features

● Large filtration area and high flow
● Low pressure difference and long life
● Wide chemical compatibility
● Clean workshop production ensure the filter practical safety
● Sterilization level filter: 0.1μm~ 5μm


Typical Application

● Compressed air
● Pressurized gases
● Tank ventilation
● Chemicals
● Solvents

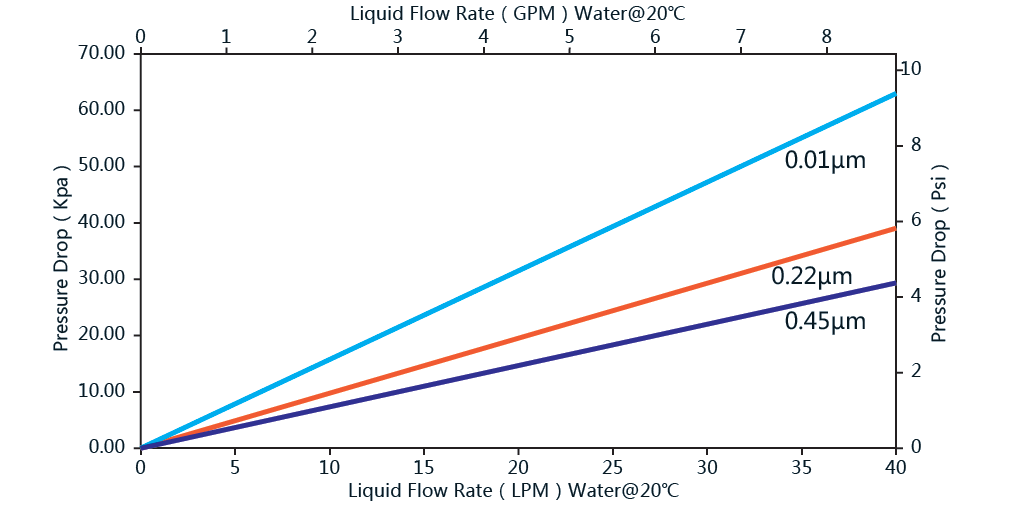

Flow Rate

Body Diameter

69mm

Length

5’’, 10’’, 20’’, 30’’, 40’’

Filter Media

PTFE

Media Support

PP

Structural Components

PP

Sealing Ring

Silicone(EPDM, Teflon and Viton are available)

Filtration Area

0.65 m2/10’’

Maximum Operating Temperature

80°C

Maximum Operating Differential Pressure

Forward 4.0 Bar @ 20℃

Brevundimonas diminuta 0.2μm

LRV≥7 /cm2

Part No. Pore Size Length Connection Sealing Ring Inner Core Price/one
CFPPT 0010=0.1μm 5 = 5’’ G=226/Locking tabs/Fin E=EPDM P=PP

Order

0020=0.2μm 10=10’’ H=226/locking tabs/Flat S=Silicone S=stainless steel

Order

0045=0.45μm 20=20’’ I=226/plug / Flat V=Viton

Order

0060=0.6μm 30=30’’ J=222/locking tabs / Fin T=Teflon

Order

0100=1μm 40=40’’ K=222/plug / Fin

Order

0300=3μm   L=222/plug / Flat

Order

0500=5μm   M=DOE
