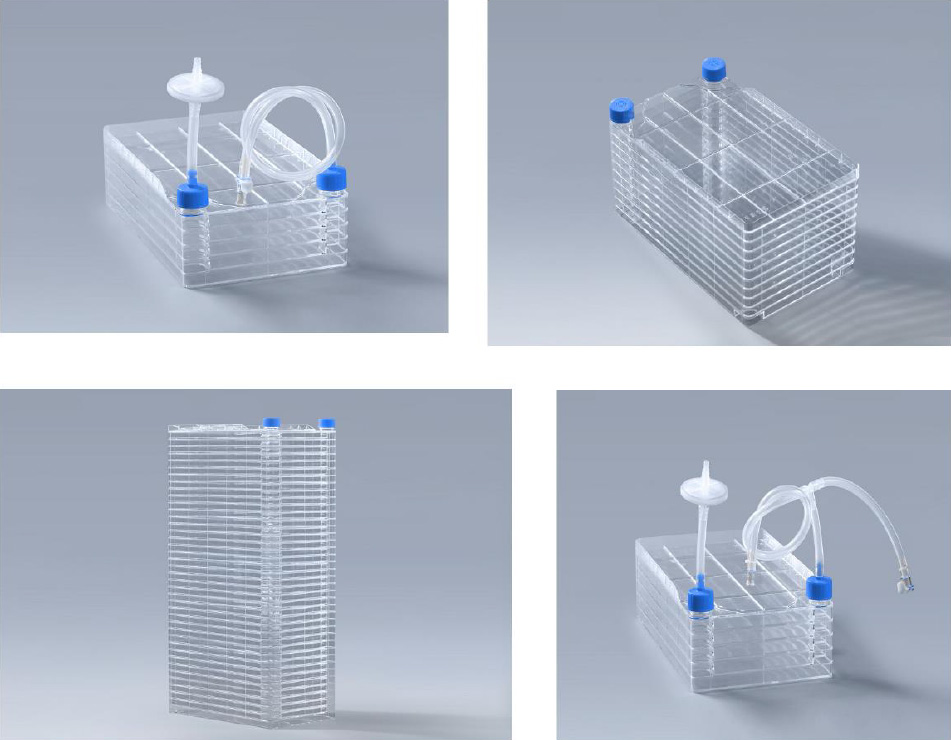

Multi-layers cell factory is the adherent cells' ideal choice for industrial mass production, laboratory operations,and large-scale cell cultures. Compared with other brands, GVS cell factory has good per-formance in culture.

Polystyrene (PS) material meet USP VI medical grade.Combined with heat treatment process of injection molding,the toughness product is not easy to be damaged while transferring.

Meanwhile,the product has undergone a three-level sealing test before delivery to ensure airtightness.

The production processes in Class-C workshop to conplies with IS013485 by using professional automatic production line.

With the perfect quality management system, each batch of products has been tested to ensure the consistency and stability of product performance between different batches.

Double wild-mouth design improves the speed of filling and harvesting liquid, with hardly bubbles, Also conducive for gas exchange and high-density cell culture.

Equipped with quick-fit seal cap (patented product), it can switch between airtight and breathable state in conventional environment(greenhouse) to meet the needs of dissolved oxygen and exhaust in different culture stages of cells and viruses.

The cell-factory is equipped with a complete set of sealed pipeline system,which can be connected with the liquid inlet and receiving system pipeline,and the liquid input and output are carried out by peristaltic pumps or pressure systems.

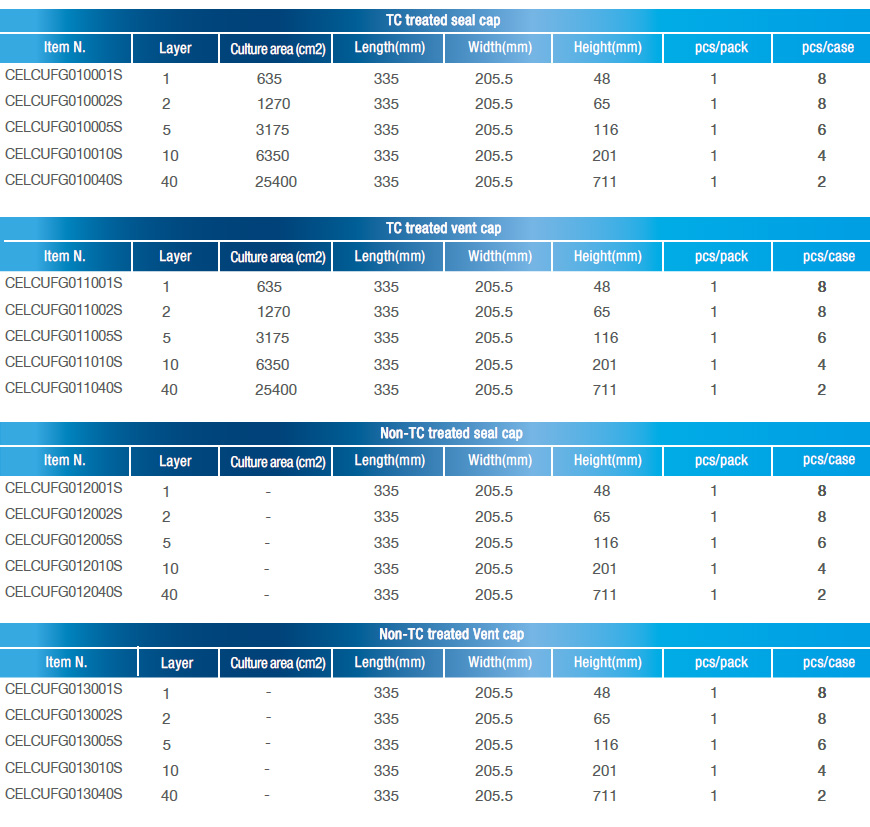

Part No. Layer Culture area (cm²) Length(mm) Width(mm) Height(mm) pcs/pack pcs/case
CELCUFC010001S 1 635 335 205.5 48 1 8

Order

CELCUFC010002S 2 1270 335 205.5 65 1 8

Order

CELCUFC010005S 5 3175 335 205.5 116 1 6

Order

CELCUFC010010S 10 6350 335 205.5 201 1 4

Order

CELCUFC010040S 40 25400 335 205.5 711 1 2

Order

CELCUFC011001S 1 635 335 205.5 48 1 8

Order

CELCUFC011002S 2 1270 335 205.5 65 1 8

Order

CELCUFC011005S 5 3175 335 205.5 116 1 6

Order

CELCUFC011010S 10 6350 335 205.5 201 1 4

Order

CELCUFC011040S 40 25400 335 205.5 711 1 2

Order

CELCUFC012001S 1 - 335 205.5 48 1 8

Order

CELCUFC012002S 2 - 335 205.5 65 1 8

Order

CELCUFC012005S 5 - 335 205.5 116 1 6

Order

CELCUFC012010S 10 - 335 205.5 201 1 4

Order

CELCUFC012040S 40 - 335 205.5 711 1 2

Order

CELCUFC013001S 1 - 335 205.5 48 1 8

Order

CELCUFC013002S 2 - 335 205.5 65 1 8

Order

CELCUFC013005S 5 - 335 205.5 116 1 6

Order

CELCUFC013010S 10 - 335 205.5 201 1 4

Order

CELCUFC013040S 40 - 335 205.5 711 1 2

Order
