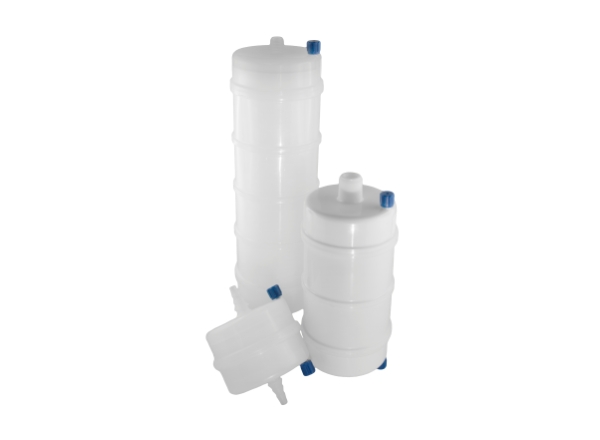

CIK-PES Capsule Filter

Description Specifications Ordering information

Product features

● Wide chemical compatibility
● High dirt hold capacity
● High retention
● Thermal bonding
● Non-fiber releasing

Typical Application

● Cell Culture Media
● Large Volume Parenterals (LVP’s)
● Pharmaceutical Bulk Chemical Solutions
● Diagnostics
● Blood and Serum Fractions
● Purified Water
● Beer, Wine and Spirits
● Juice & Soft Drinks
● Bottled Water

Filtration Area	2.5’’ = 1400 cm² 5’’ = 2500 cm² 10’’ = 6000 cm² 20’’ = 12000 cm² 30’’ = 18000 cm² 40’’ = 24000 cm²
Filter Media	PES
Media Support	PP
End Caps/ lner Core/Outer Cage:	PP
Sealing Method	Thermal Bonding
Maximum Operating Temperature	80°C
Maximum Operating Pressure	5 bar @25°C

Part No.	Pore Size	Application	Sterilization	Size	Fittings	Vent/Drain
CIKPS	0010=0.1μm	G = Gen Purpose	N = Not Sterile	SS = 2.5’’	5TC = 1.5" TC	SS = St/St	Order
	0020=0.2μm			LL=5’’	2HB = 1/2" HB	HH = HB/HB	Order
	0045=0.45μm			TE=10’’	4HB = 3/4" HB	SH = St/HB	Order
	0065=0.65μm			TW=20’’	T2B = 1.5" TC/ 1/2" HB	HS = HB/St	Order
	0080=0.8μm			TH=30’’	T4B = 1.5" TC/ 3/4" HB		Order
	0120=1.2μm			FO=40’’	2BT = 1/2"HB/ 1.5” TC		Order
					2B4 = 1/2"HB/ 3/4" HB		Order
					4BT = 3/4"HB/ 1.5" TC		Order
					4B2 = 3/4"HB/ 1/2" HB		Order
