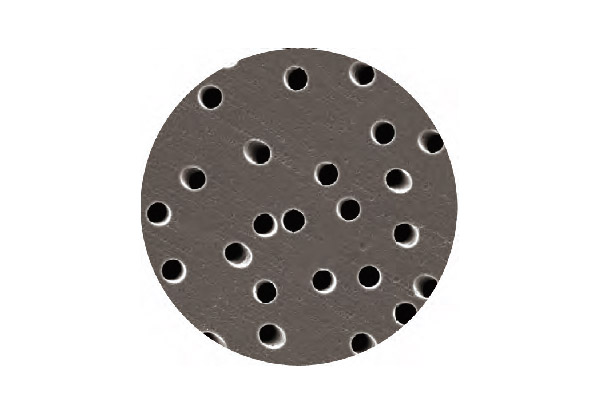

GVS Polycarbonate Track Etched (PCTE) Membrane is made from a thin polycarbonate film with precisely defined pores. It is ideally suited for use in cellular-based filtration assays as well as filtration applications where high purity is required. The membrane is produced through a two-step, proprietary manufacturing process that employs high quality standards. In the first step, polycarbonate film is exposed to ion particles that pass through it. As the ions pass through the film, they create “tracks” where the polymer is damaged. The beamed film is then exposed to a chemical that etches out the tracks creating precise, cylindrical pores. Pore density is controlled by the number of tracks per unit area, and pore size is controlled by varying the temperature, strength and time of exposure to the etching solution. This unique process allows for increased control over pore size and density to ensure the physical properties of each membrane precisely fit your specifications. The resulting membrane is a thin, translucent polycarbonate film with a smooth, flat surface. All particles larger than the pore size are captured on its surface.

GVS offers a unique solution for Legionella analysis following the new standard UNI EN ISO 11731. Our sterile gridded membranes are suitable for this test and give you the best performances. GVS offers the PCTE AOX Membrane with exceptionally low protein-binding/extractable levels and precisely defined pores. These AOX polycarbonate (PCTE) membranes are ideally suited for the detection of man-made pollution in groundwater and wastewater (organic halide adsorption determination).

To optimize the suitability of PCTE, we offer a variety of products with unique characteristics:

PVP (polyvinylpyrillidone)-treated for a hydrophilic membrane

AOX-certified for applications requiring extremely low extractables

Black-dyed membrane for staining applications

PVP-free for a hydrophobic membrane

Features:

Absolute pore size and density allows for precise size separation

Direct thickness and pore size measurements provide accurate characteristics

Smooth, thin, glass-like surface is suitable for microscopy and cellular applications

Superior strength allows for aggressive handling

Low protein binding ensures clean results

Resists chemical staining to ease microscopic visualization

Passes USP VI Class toxicity testing for use

Applications

General filtration

Legionella test (UNI EN ISO 11731_2017)

Removal of red blood cells from plasma

Flow control of reagents through assays

Precise filtration and prefiltration

Fuel testing

Cytology

Microscopy

Thickness5-20μm
Refractive indicesBirefringent at 1.584 and 1.625
Water Adsorption(%wt. gain 24-hr immersion)
0.24%
Residual Ash  Weight Average0.92μg/cm2
Specific Gravity0.94-0.97
AutoclavableYes
LeachablesNegligible
Wetting CharacteristicsHydrophilic or Hydrophobic
Wetting Agent(hydrophilic)
Polyvinylpyrrolidone(PVP)
Burst Strength Minimum0.7 bar(10 psi)

Migration of Filter Media

0
Optical PropertiesSemi-translucent

Performance Characteristics

 Pore Size (a)(μm)Pore Density (b)(pores/cm2)Nominal Thickness (c)(μm)Min.Bubble Point (d)(psi)Typical Flow Rates
Water(e)(mL/min/cm2)

Air

(L/min/cm2)

204×104311000 11(g)
145×10460.21400 63.5(g)
121×10580.41250 63.5(g)
101×105100.5115034.5(g)
81×10570.71000 30(g)
54×105101.2700 30(g)
32×1069244037.5(g)
22×10610330016.5(f)
12×10711613020(f)
0.83×107979018(f)
0.63×10799607.5(f)
0.4
1×1081012337.5(f)
0.23×1081020103(f)
0.14×1086302.51.5(f)
0.084×1086380.60.75(f)
0.056×1086500.40.37(f)
0.036×1086NA0.20.075(f)
0.01
6×1086NA0.10.0075(f)

(a)公差+0%，-20%

(b)公差+/-15%

(c)公差+/-10%

(d)Measured using Isopropanol(IPA)

(e)Initialflowratesusingprefilte-redwaterat10psid(0.7kg/cm2)

(f)Initialflowratesusingprefiltered air at 10 psid(0.7kg/cm2)

(g)Initialflowratesusingprefilte-red air a 5psi(0.35kg/cm2)


Part No. Membrane Diameter Pore Size Membrane Color Package Sterilized
1222075 293mm 3.0μm Polycarbonate Plain 20/pk No

Order
1222077 47mm 3.0μm Polycarbonate Hydrophobic 100/pk No

Order
1222452 25mm 3.0μm Polycarbonate black 100/pk No

Order
1228132 8x10in 3.0μm Polycarbonate Hydrophobic 30/pk No

Order
3002536 30cmx3m 3.0μm Polycarbonate Plain 1/pk No

Order
3013824 76mm 3.0μm Polycarbonate Plain 100/pk No

Order
3032159 47mm 3.0μm Polycarbonate black 100/pk No

Order
3033302 293mm 3.0μm Polycarbonate black 20/pk No

Order
1215051 13mm 5.0μm Polycarbonate Hydrophobic 100/pk No

Order
1215188 25mm 5.0μm Polycarbonate black 100/pk No

Order
1215388 142mm 5.0μm Polycarbonate Plain 20/pk No

Order
1215630 13mm 5.0μm Polycarbonate Plain 100/pk No

Order
1215631 25mm 5.0μm Polycarbonate Plain 100/pk No

Order
1215632 47mm 5.0μm Polycarbonate Plain 100/pk No

Order
1221004 90mm 5.0μm Polycarbonate Plain 30/pk No

Order
1221230 47mm 5.0μm Polycarbonate black 100/pk No

Order
1221286 13mm 5.0μm Polycarbonate black 100/pk No

Order
1221295 19x42mm 5.0μm Polycarbonate Plain 100/pk No

Order
1221331 25x80mm 5.0μm Polycarbonate Hydrophobic 50/pk No

Order
1221746 25mm 5.0μm Polycarbonate Hydrophobic 100/pk No

Order
1222080 8x10in 5.0μm Polycarbonate Plain 30/pk No

Order
1222081 47mm 5.0μm Polycarbonate Hydrophobic 100/pk No

Order
1222082 90mm 5.0μm Polycarbonate Hydrophobic 30/pk No

Order
1225120 8x10in 5.0μm Polycarbonate Hydrophobic 30/pk No

Order
1264835 30cmx3m 5.0μm Polycarbonate Plain 1/pk No

Order
3013825 76mm 5.0μm Polycarbonate Plain 100/pk No

Order
1215042 25x80mm 8.0μm Polycarbonate Hydrophobic 50/pk No

Order
1222085 8x10in 8.0μm Polycarbonate Plain 30/pk No

Order
1215052 13mm 8.0μm Polycarbonate Hydrophobic 100/pk No

Order
1222086 90mm 8.0μm Polycarbonate Hydrophobic 30/pk No

Order
1215148 47mm 8.0μm Polycarbonate Hydrophobic 100/pk No

Order
1225783 8x10in 8.0μm Polycarbonate Hydrophobic 30/pk No

Order
1215201 142mm 8.0μm Polycarbonate Plain 20/pk No

Order
1229540 25mm 8.0μm Polycarbonate black 100/pk No

Order
1215403 90mm 8.0μm Polycarbonate Plain 30/pk No

Order
1215633 13mm 8.0μm Polycarbonate Plain 100/pk No

Order
1215634 25mm 8.0μm Polycarbonate Plain 100/pk No

Order
1215637 47mm 8.0μm Polycarbonate Plain 100/pk No

Order
1220686 25x80mm 8.0μm Polycarbonate Plain 50/pk No

Order
1220867 19x42mm 8.0μm Polycarbonate Plain 100/pk No

Order
3013894 19mm 8.0μm Polycarbonate Plain 100/pk No

Order
1215046 13mm 0.01μm Polycarbonate Plain 100/pk No

Order
1215068 47mm 0.01μm Polycarbonate Plain 100/pk No

Order
1215116 8x10in 0.01μm Polycarbonate Plain 30/pk No

Order
1215321 25mm 0.01μm Polycarbonate Plain 100/pk No

Order
1225184 30cmx3m 0.01μm Polycarbonate Plain 1/pk No

Order
1215047 13mm 0.03μm Polycarbonate Plain 100/pk No

Order
1215057 25mm 0.03μm Polycarbonate Plain 100/pk No

Order
1215069 47mm 0.03μm Polycarbonate Plain 100/pk No

Order
1227264 8x10in 0.03μm Polycarbonate Plain 30/pk No

Order
1239558 30cmx3m 0.03μm Polycarbonate Plain 1/pk No

Order
1215048 13mm 0.05μm Polycarbonate Plain 100/pk No

Order
1215070 47mm 0.05μm Polycarbonate Plain 100/pk No

Order
1215271 8x10in 0.05μm Polycarbonate Plain 30/pk No

Order
1220868 25mm 0.05μm Polycarbonate Plain 100/pk No

Order
1221227 90mm 0.05μm Polycarbonate Plain 30/pk No

Order
1221229 19mm 0.05μm Polycarbonate Plain 100/pk No

Order
1221290 142mm 0.05μm Polycarbonate Plain 20/pk No

Order
1221291 76mm 0.05μm Polycarbonate Plain 100/pk No

Order
1222091 293mm 0.05μm Polycarbonate Plain 20/pk No

Order
3027177 1/pk 0.05μm Polycarbonate Plain 1/pk No

Order
1215058 25mm 0.08μm Polycarbonate Plain 100/pk No

Order
1222092 13mm 0.08μm Polycarbonate Plain 100/pk No

Order
1222093 47mm 0.08μm Polycarbonate Plain 100/pk No

Order
1222094 90mm 0.08μm Polycarbonate Plain 30/pk No

Order
1222095 142mm 0.08μm Polycarbonate Plain 20/pk No

Order
1222096 293mm 0.08μm Polycarbonate Plain 20/pk No

Order
3035602 300x3000mm 0.08μm Polycarbonate Plain 1/pk No

Order
1215056 19mm 0.1μm Polycarbonate Plain 100/pk No

Order
1215059 25mm 0.1μm Polycarbonate Hydrophobic 100/pk No

Order
1215117 8x10in 0.1μm Polycarbonate Plain 30/pk No

Order
1215150 90mm 0.1μm Polycarbonate Plain 30/pk No

Order
1215219 293mm 0.1μm Polycarbonate Plain 20/pk No

Order
1215304 142mm 0.1μm Polycarbonate Plain 20/pk No

Order
1215311 13mm 0.1μm Polycarbonate black 100/pk No

Order
1215315 25mm 0.1μm Polycarbonate black 100/pk No

Order
1215605 13mm 0.1μm Polycarbonate Plain 100/pk No

Order
1215606 25mm 0.1μm Polycarbonate Plain 100/pk No

Order
1215608 47mm 0.1μm Polycarbonate Plain 100/pk No

Order
1220970 76mm 0.1μm Polycarbonate Plain 100/pk No

Order
1221503 47mm 0.1μm Polycarbonate black 100/pk No

Order
1221504 13mm 0.1μm Polycarbonate Hydrophobic 100/pk No

Order
1232919 8x10in 0.1μm Polycarbonate Hydrophobic 30/pk No

Order
1239556 30cmx3m 0.1μm Polycarbonate Plain 1/pk No

Order
3048982 8x10in 0.1μm Polycarbonate black 30/pk No

Order
1213889 47mm 0.2μm Polycarbonate black 100/pk No

Order
1215118 8x10in 0.2μm Polycarbonate Plain 30/pk No

Order
1215151 90mm 0.2μm Polycarbonate Plain 30/pk No

Order
1215185 13mm 0.2μm Polycarbonate black 100/pk No

Order
1215215 142mm 0.2μm Polycarbonate Plain 20/pk No

Order
1215385 293mm 0.2μm Polycarbonate Plain 20/pk No

Order
1215609 25mm 0.2μm Polycarbonate black 100/pk No

Order
1215610 13mm 0.2μm Polycarbonate Plain 100/pk No

Order
1215611 25mm 0.2μm Polycarbonate Plain 100/pk No

Order
1215612 47mm 0.2μm Polycarbonate Plain 100/pk No

Order
1220694 19mm 0.2μm Polycarbonate Plain 100/pk No

Order
1220891 76mm 0.2μm Polycarbonate Plain 100/pk No

Order
1222017 25mm 0.2μm Polycarbonate Hydrophobic 100/pk No

Order
1222018 47mm 0.2μm Polycarbonate Hydrophobic 100/pk No

Order
1223036 8x10in 0.2μm Polycarbonate Hydrophobic 30/pk No

Order
1239557 30cmx3m 0.2μm Polycarbonate Plain 1/pk No

Order
3027176 293mm 0.2μm Polycarbonate black 20/pk No

Order
1226157 47mm 0.2μm Polycarbonate Plain 200/pk No

Order
1212790 25mm 0.4μm Polycarbonate black 100/pk No

Order
1214567 47mm 0.4μm Polycarbonate black 100/pk No

Order
1215071 47mm 0.4μm Polycarbonate AOX 100/pk No

Order
1215073 47mm 0.4μm Polycarbonate Hydrophobic 100/pk No

Order
1215142 13mm 0.4μm Polycarbonate black 100/pk No

Order
1215152 142mm 0.4μm Polycarbonate Plain 20/pk No

Order
1215274 8x10in 0.4μm Polycarbonate Plain 30/pk No

Order
1215303 90mm 0.4μm Polycarbonate Plain 30/pk No

Order
1215317 293mm 0.4μm Polycarbonate Plain 20/pk No

Order
1215613 13mm 0.4μm Polycarbonate Plain 100/pk No

Order
1215614 25mm 0.4μm Polycarbonate Plain 100/pk No

Order
1215615 37mm 0.4μm Polycarbonate Plain 100/pk No

Order
1215617 47mm 0.4μm Polycarbonate Plain 100/pk No

Order
1220835 25mm 0.4μm Polycarbonate Hydrophobic 100/pk No

Order
1227213 8x10in 0.4μm Polycarbonate black 30/pk No

Order
1228342 76mm 0.4μm Polycarbonate Plain 100/pk No

Order
1233373 8x10in 0.4μm Polycarbonate Hydrophobic 30/pk No

Order
3023783 62mm 0.4μm Polycarbonate Plain 100/pk No

Order
3026431 25mm 0.4μm Polycarbonate AOX 100/pk No

Order
1226156 47mm 0.4μm Polycarbonate Plain 200/pk No

Order
1215198 47mm 0.6μm Polycarbonate black 100/pk No

Order
1215290 25mm 0.6μm Polycarbonate black 100/pk No

Order
1215618 13mm 0.6μm Polycarbonate Plain 100/pk No

Order
1215619 25mm 0.6μm Polycarbonate Plain 100/pk No

Order
1215620 47mm 0.6μm Polycarbonate Plain 100/pk No

Order
1220861 293mm 0.6μm Polycarbonate Plain 20/pk No

Order
1221485 142mm 0.6μm Polycarbonate Plain 20/pk No

Order
1222025 13mm 0.6μm Polycarbonate black 100/pk No

Order
1222026 90mm 0.6μm Polycarbonate Plain 30/pk No

Order
1222027 8x10in 0.6μm Polycarbonate Plain 30/pk No

Order
1224680 76mm 0.6μm Polycarbonate Plain 30/pk No

Order
3054144 8x10in 0.6μm Polycarbonate black 100/pk No

Order
1215138 25mm 0.8μm Polycarbonate black 100/pk No

Order
1215194 90mm 0.8μm Polycarbonate Plain 30/pk No

Order
1215236 13mm 0.8μm Polycarbonate black 100/pk No

Order
1215309 142mm 0.8μm Polycarbonate Plain 20/pk No

Order
1215621 13mm 0.8μm Polycarbonate Plain 100/pk No

Order
1215622 25mm 0.8μm Polycarbonate Plain 100/pk No

Order
1215623 37mm 0.8μm Polycarbonate Plain 100/pk No

Order
1215624 47mm 0.8μm Polycarbonate Plain 100/pk No

Order
1222028 47mm 0.8μm Polycarbonate black 100/pk No

Order
1222030 8x10in 0.8μm Polycarbonate Plain 30/pk No

Order
1222032 25mm 0.8μm Polycarbonate Hydrophobic 100/pk No

Order
1225894 76mm 0.8μm Polycarbonate Plain 30/pk No

Order
1215145 293mm 1.0μm Polycarbonate Plain 20/pk No

Order
1215153 90mm 1.0μm Polycarbonate Plain 30/pk No

Order
1215161 25mm 1.0μm Polycarbonate black 100/pk No

Order
1215625 13mm 1.0μm Polycarbonate Plain 100/pk No

Order
1215627 25mm 1.0μm Polycarbonate Plain 100/pk No

Order
1215628 47mm 1.0μm Polycarbonate Plain 100/pk No

Order
1216611 142mm 1.0μm Polycarbonate Plain 20/pk No

Order
1220860 76mm 1.0μm Polycarbonate Plain 100/pk No

Order
1221181 13mm 1.0μm Polycarbonate black 100/pk No

Order
1221005 293mm 2.0μm Polycarbonate Plain 20/pk No

Order
1221302 37mm 1.0μm Polycarbonate Plain 100/pk No

Order
1221232 8x10in 2.0μm Polycarbonate Plain 30/pk No

Order
1221429 8x10in 1.0μm Polycarbonate Plain 30/pk No

Order
1222070 90mm 2.0μm Polycarbonate Plain 30/pk No

Order
1222035 47mm 1.0μm Polycarbonate black 100/pk No

Order
1222071 142mm 2.0μm Polycarbonate Plain 20/pk No

Order
1222037 25mm 1.0μm Polycarbonate Hydrophobic 100/pk No

Order
3033301 293mm 2.0μm Polycarbonate black 20/pk No

Order
1222038 47mm 1.0μm Polycarbonate Hydrophobic 100/pk No

Order
1215036 47mm 3.0μm Polycarbonate Plain 100/pk No

Order
1224067 8x10in 1.0μm Polycarbonate Hydrophobic 30/pk No

Order
1215049 13mm 3.0μm Polycarbonate Plain 100/pk No

Order
1227203 19mm 1.0μm Polycarbonate Plain 100/pk No

Order
1215050 13mm 3.0μm Polycarbonate Hydrophobic 100/pk No

Order
1267667 30cmx3m 1.0μm Polycarbonate Plain 1/pk No

Order
1215063 25mm 3.0μm Polycarbonate Plain 100/pk No

Order
1268126 25x80mm 1.0μm Polycarbonate Plain 50/pk No

Order
1215275 8x10in 3.0μm Polycarbonate Plain 30/pk No

Order
1215062 25mm 2.0μm Polycarbonate Plain 100/pk No

Order
1221296 25x80mm 3.0μm Polycarbonate Hydrophobic 50/pk No

Order
1215297 25mm 2.0μm Polycarbonate black 100/pk No

Order
1221871 25mm 3.0μm Polycarbonate Hydrophobic 100/pk No

Order
1215629 47mm 2.0μm Polycarbonate Plain 100/pk No

Order
1222074 90mm 3.0μm Polycarbonate Plain 30/pk No

Order
1215985 13mm 2.0μm Polycarbonate Plain 100/pk No

Order
1221293 25mm 8.0μm Polycarbonate Hydrophobic 100/pk No

Order
1222084 293mm 8.0μm Polycarbonate Plain 20/pk No

Order
Other Application
Send Mail
change
Contact Us

Give Us A Call

How Can We Help?

Country or Region

Italy

Tel. +86 512 6661 9880

Germany

Tel. +49 (0) 2224-3786

Russia

Tel. +7-9168384879

Turkey

Tel. +90 2165044767

Rumania

Tel. +40 244 463044

China

Tel. +86 512 6661 9880

Korea

Tel. +82 31 563 9873

Japan

Tel. +81 3 5937 1447

India

Tel. +91 98840 58375

America

Tel.  +1 866 7361250

Tel.  +1 419.423.9040

Tel.  +1 715.568.5944

Brazil

Tel. +55 19 38791011

Argentina

Tel. +54 11 48614750

Share with the world
facebook sharing button
twitter sharing button
linkedin sharing button
pinterest sharing button
Address

Address：Fengqiao private science and technology park, 602 changjiang road, huqiu district, suzhou

For more than 40 years, GVS has focused on innovating its products and production processes, constantly improving its development capacity to provide the best products, service and support for its clients.

Copyright © GVS Group All Rights Reserved
