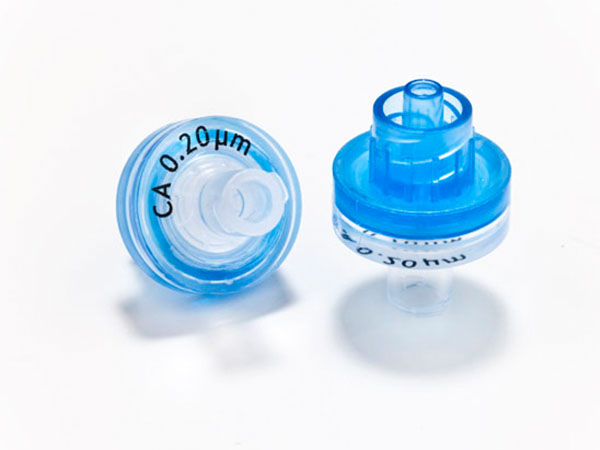

13mm 注射式过滤器ABLUO®

信息咨询

信息咨询

请填写以下信息,*为必填

信息类型

咨询信息
  • 密理博
  • 赛多利斯
  • 颇尔
  • 赛默飞
  • 其他
  • 了解
  • 不了解
  • 百度搜索
  • 微信平台
  • 展会
  • 代理商
  • 第三方平台
点击更换

产品规格

样品和各类型溶液、溶剂或者气体的快速和高效过滤

在聚丙烯或丙烯酸壳注入

多功能连接器:为不同的应用装有鲁尔锁或鲁尔滑阳性连接器

无菌和非无菌选项

可选大容量包或单个装

按要求定制产品和包装

特点和优势

壳材料:丙烯酸和聚丙烯

膜材料:醋酸纤维素、尼龙、聚醚砜PES、硝化纤维混合脂、再生纤维素、聚偏氟乙烯PVDF、聚四氟乙烯PTFE和聚乙烯PE。

膜直径: 13毫米

壳直径: 18毫米

有效过滤面积:0.76平方厘米

压强: 5巴

无菌:否

进口/出口: FLL/MLL-MLS

应用

水、有机和醇溶剂过滤

分析性的样品准备、高效液相色谱法

IC色谱法

燃油液体和加工件

澄清

蛋白质化学性

细胞培养

包装:每箱500件

PRODUCT CODEDESCRIPTION
  • FJ13ANCCA008ED01Filter 13 mm Diameter. Cellulose Acetate. 0.80 μm
    SPECIFICATIONS
    Product codeFJ13ANCCA008ED01
    DescriptionSyringe filter diam.13 mm FLL/MLL Acrylic Green membr.CA 0.80 μm
    Membrane diameter (mm)13
    Weight (g)1.86
    Membrane materialCellulose Acetate
    Pore size (μm)0.8
    Pressure (bar)5
    Bubble point - typical (psi using water)12
    Housing diameter (mm)18
    ColorGreen
    Inlet / outletFemale luer lock/Male luer lock
    Typical water flow rate (ml/min at 15 psi & 23°C)30
    Effective filtration area (cm2)0.58
    ApplicationsFiltration of Aqueous Solutions; Filtration of Alcohol Solutions; Clarification
    Box quantity500
    NotesBiological sample preparation; Very low protein retention: protein and enzyme filtration with very low protein retention. Filtration of protein-containing solutions with minimal protein loss; For sterilization and clarification where critical material needs to be recovered; Receptor binding studies; The 0.8 μm membrane is used for the particle filtration in samples where a low adsorption is required.
